INTRODUCTION

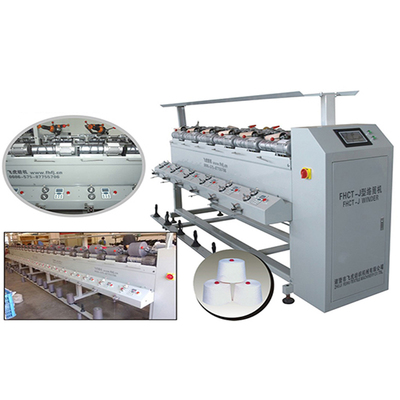

FHCT-J tight type yarn winding machine is ideal model applied to cotton,line,slik and other types of tube yarn or skein yarn(hank) winding onto cones with tight yarn which used directly on knitting machine,warping machine etc.
This machine is especially suitable for cotton hank of K silk winding into soft or tight cones what meet the technological requirements.
Main feature
1.Grooved drum of superplastic alloy material, high strength, light weight.Groove design guide has an excellent performance broad applicability, the surface adopt the new technology of polishing,Ra< 0.8um roughness, hardness HV> 900，computer dynamic balance correction to meet high speed and low noise.
2.Electric rotary waxing device to ensure that the yarn wax evenly.
3.Individual spindle control, slow start, the line speed is adjustable, broken yarn stop and alarm functions.
4.Advanced touch screen interface.
Technical parameter
Groove drum |
0/D 82mm, spindle distance 2.5，symmetry0° |
Tube type |
3°30'；4°20'(462);5°57'(468) |
Spindle |
12spindles/group |
Assemble |
Max.9group for 1set, total 108 spindles. (Normal 7 group 84 spindles) |
Max. speed |
2800R/min. |
Tube gauze diameter | 250mm |
Paramater design | Individual or touch screen interface control(fixed-length,slow-start,adjustable speed,broken yarn auto stop) |
Voltage |
3phase5 wires, 380V 50HZ |
| Power |
90W/spindle+5w(wax)+cleaning |
Size(LxWxH) |
L 2230 x W 1100 x H 1600 mm |
Weight | 350kg/group |
