Introduction: Why Should Yarn Quality Start with Doubling?
In the textile industry, yarn quality is a decisive factor in determining the grade of finished fabrics. Imagine if the yarn lacks sufficient strength or has poor uniformity—frequent breaks during weaving or color variations after dyeing could significantly compromise the final garment's hand feel and durability. Many of these issues can be traced back to the initial doubling process.

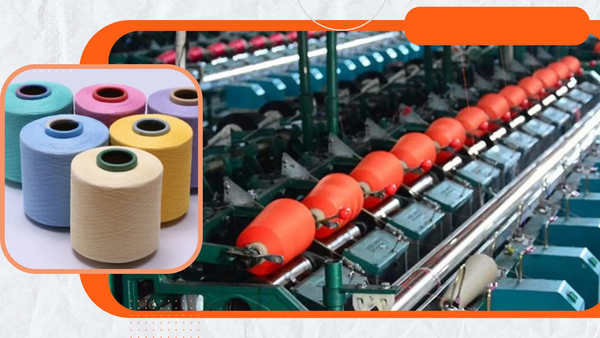

Doubling, the core task of combining multiple single yarns into one, enhances the stability and strength of the yarn. The double-side winding machine, as the central equipment in this stage, directly impacts yarn uniformity, tension, and splice quality. However, doubling is just the starting point—the subsequent winding process is equally critical, as it determines whether the yarn can unwind smoothly and meet the demands of high-speed weaving.
How can we ensure full-process quality control from doubling to winding? This article will delve into the key technical aspects of each stage, helping you optimize production and elevate yarn quality.
I. Doubling Stage: The Core Role of the Double-Side Winding Machine
1. How Does the Doubling Machine Affect Yarn Uniformity?
Yarn uniformity directly influences fabric appearance and hand feel. If tension varies during doubling, the merged yarn may develop thick and thin spots, leading to fabric defects in subsequent weaving.
Traditional single-side doubling machines, when running at high speeds, often suffer from uneven winding angles, causing one side of the yarn to be tighter than the other. In contrast, the double-side winding machine employs synchronous winding technology, ensuring more balanced tension distribution and significantly reducing fluctuations. Advanced models also feature online monitoring systems that detect yarn diameter variations in real time and automatically adjust winding parameters to maintain optimal uniformity.
2. Tension Control: Stability is Key
Tension is one of the most critical variables in doubling. Excessive tension can overstretch the yarn, weakening its strength and elasticity, while insufficient tension leads to loose winding, affecting unwinding performance.
Dynamic Tension Adjustment: Modern doubling machines use servo motors and high-precision sensors to monitor yarn tension in real time, automatically adjusting based on fiber type (e.g., cotton, polyester, blends) to ensure stability.
Reducing Breakage Rates: Over 40% of doubling breaks are caused by uneven tension. By optimizing yarn guide design, using low-friction ceramic components, and integrating intelligent tension control, breakage rates can be significantly reduced, improving efficiency.
3. Splice Quality: The Hidden Culprit
Splice quality after yarn breaks is often overlooked, yet it greatly impacts downstream processes. Traditional manual knots create bulky joints that may cause breaks or fabric defects during high-speed weaving.
Automatic Splicing Technology: Advanced doubling machines use air or mechanical splicing, producing joints nearly identical to the original yarn in diameter and retaining over 90% of the yarn’s strength.
Splice Inspection Systems: Some high-end models include splice quality detection, automatically rejecting substandard splices to ensure consistency.
II. From Doubling to Winding: Ensuring a Seamless Transition
1. Post-Doubling Yarn Inspection
Before winding, rigorous inspection ensures defective yarns don’t advance to the next stage.
Uniformity Testing: Use instruments like the Uster Tester to measure yarn CV% (coefficient of variation). High CV% indicates tension issues or mechanical faults.
Strength Testing: Electronic testers measure breaking strength and elongation, ensuring the yarn can withstand weaving or knitting stresses.
Visual Inspection: Manual or camera-based checks for hairiness, contamination, or knots, especially oil stains or fly adherence.
2. Winding Optimization Strategies
Winding prepares yarn for weaving by rewinding it into cones or cheeses. Quality control here affects unwinding performance and weaving efficiency.
(1) Winding Density Control
Over-compression deforms yarns and affects dyeing uniformity; under-winding risks cone collapse during unwinding.
Smart Pressure Adjustment: Modern winders use pneumatic or spring-loaded systems to auto-adjust winding pressure based on yarn type and count.
Tapered Winding: Optimized winding angles create conical package edges, reducing unwinding friction.
(2) Smooth Unwinding
Poor unwinding causes breaks and machine stops, hampering productivity.
Precision Anti-Patterning: Electronic traverse systems prevent overlapping winds, minimizing entanglement.
Balloon Control: Optimizing tensioner and guide positions stabilizes the yarn balloon, reducing tension fluctuations.
(3) Hairiness Reduction
Friction with guides increases hairiness, affecting fabric smoothness and hand feel.
Low-Friction Guides: Ceramic or chrome-plated guides minimize fiber damage.
Hairiness Reduction Devices: Some winders use air or electrostatic systems to lay surface fibers flat, lowering hairiness indexes.
III. Full-Process Quality Monitoring: The Power of Data
1. Online Monitoring Systems
Modern doubling and winding machines integrate sensors for real-time data:
Tension Tracking: Detects fluctuations to identify mechanical or process issues.
Breakage Counting: Logs breaks per spindle to diagnose root causes (e.g., material or equipment faults).
Production Analytics: Tracks machine efficiency for better planning.
2. Data-Driven Optimization
Big data enables:
Predictive Maintenance: Forecasts component lifespan (e.g., bearings, motors) to preempt failures.
Process Refinement: Compares parameters (e.g., tension, speed) to identify optimal settings.
3. The Irreplaceable Human Touch
Despite automation, manual checks remain vital:
Tactile Inspection: Experienced workers assess softness and smoothness by hand.
Color Verification: Critical for dyed yarns; samples are compared under standardized lighting.
Specialty Yarn Checks: E.g., slub or core-spun yarns require style conformity reviews.
IV. Future Trends: Smart and Sustainable Production
1. Intelligent Doubling and Winding
2. Green Manufacturing
Energy-Efficient Designs: High-efficiency motors and inverters cut power usage.
Eco-Friendly Materials: Biodegradable tubes reduce plastic waste.
Lubricant Reduction: Optimized yarn lubrication eases post-dyeing wastewater treatment.
Conclusion: Quality Lies in the Details
Yarn quality control isn’t isolated to one step—it’s a meticulous, end-to-end process. By selecting high-performance double-side winding machines, fine-tuning parameters, and enforcing rigorous inspections, you can produce yarn that stands out in the market.
Remember: Every detail refined translates to a superior end product. It’s time to reevaluate your production line and craft higher-quality yarn!
