INTRODUCTION

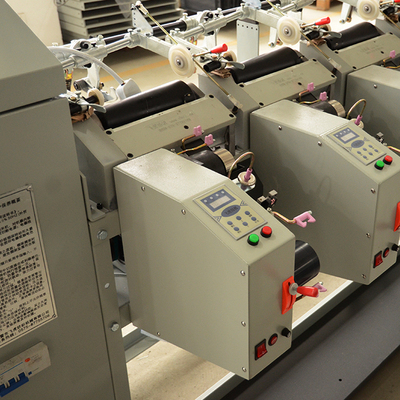

The model applies to chemical fiber,yarn,rope and other tube-shaped form,to meet the process of dyeing or high-speed weaving and back complex cylinder pipe mode(commonly known as the cone to cone),or yarns such as waxing.The machine adopts single spindle control,oil automatically,edge device,anti-stop,anti-stack device,auto-stop of yarn broken,fixed length control,speed is adjustable,the yarn tension-controlled device,advanced technologies such as waxing device,to ensure high quality of this machine.It features:line speed,tension even after forming,forming beautiful.
TECHNICAL PARAMETERS
| Spindle | 4spindles（6spindles）/group |
| Friction sticks | Flat tubeΦ80x220 |
| ConeΦ80x220 Taper3.5° |
| Tube type | Flat tube or cone(According to customer requirements) |
| Max.yarn diameter | ≤260mm |
| Voltage | 380V 50HZ 3phase5 wires,spindle power120W |
| Size(LxWxH) | 4spindles：1454*690*1700mm/group 6spindles ：2150*690*1400mm/group (Control box 260mm) |
| Weight | 200kgs/group |
